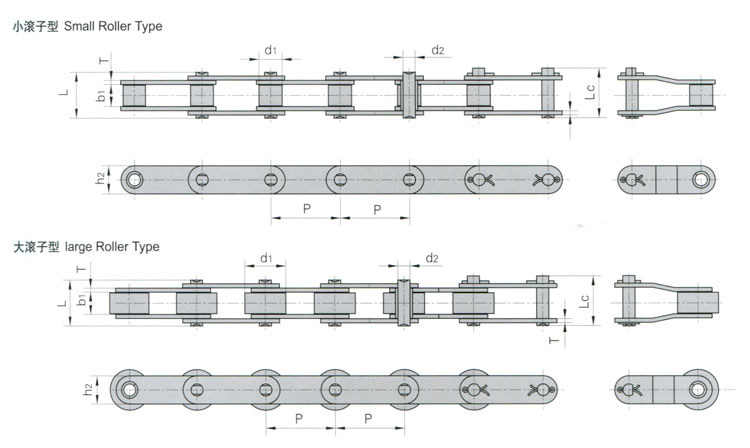

| DIN/ISO 链号 DIN/ISO Chain No. |
ANSI 链号 ANSI Chain No. |
节距 Pitch |
滚子直径 Roller diameter |
内节内宽 Width between inner plates |
销轴直径 Pin diameter |
销轴长度 Pin length |
内链板高度 Inner plate depth |
链板 厚度 Plate thick- ness |
极限拉伸 载荷 Ultimate tensile strength |
平均拉伸 载荷 Average tensile strength |
每米 长重 Weight per meter |
|
| P | d1 max |
b1 min |
d2 max |
L max |
Lc max |
h2 max |
T max |
Fu min |
q | |||
| mm | mm | mm | mm | mm | mm | mm | mm | kN/LB | kN | kg/m | ||
| C208A C208AL | C2040 C2042 | 25.40 | 7.95 15.88 | 7.85 | 3.98 | 16.6 | 17.8 | 12.0 | 1.50 | 14.1/3205 | 16.7 | 0.50 0.84 |
| C208AH | C2040H | 25.40 | 7.95 | 7.85 | 3.98 | 18.8 | 19.9 | 12.0 | 2.03 | 14.1/3205 | 17.2 | 0.65 |
| C208B C208BL | 25.40 | 8.51 15.88 | 7.75 | 4.45 | 16.7 | 18.2 | 11.8 | 1.60 | 18.0/4091 | 19.4 | 0.55 0.89 | |
| C210A C210AL | C2050 C2052 | 31.75 | 10.16 19.05 | 9.40 | 5.09 | 20.7 | 22.2 | 15.0 | 2.03 | 22.2/5045 | 28.1 | 0.78 1.27 |
| C212A C212AL | C2060 C2062 | 38.10 | 11.91 22.23 | 12.57 | 5.96 | 25.9 | 27.7 | 18.0 | 2.42 | 31.8/7227 | 36.8 | 1.12 1.61 |
| C212AH C212AHL | C2060H C2062H | 38.10 | 11.91 22.23 | 12.57 | 5.96 | 29.2 | 31.6 | 18.0 | 3.25 | 31.8/7227 | 41.6 | 1.44 2.07 |
| C216A C216AL | C2080 C2082 | 50.80 | 15.88 28.58 | 15.75 | 7.94 | 32.7 | 36.5 | 24.0 | 3.25 | 56.7/12886 | 65.7 | 2.08 3.12 |
| C216AH C216AHL | C2080H C2082H | 50.80 | 15.88 28.58 | 15.75 | 7.94 | 36.2 | 39.4 | 24.0 | 4.00 | 56.7/12886 | 70.0 | 2.54 3.58 |
| C220A C220AL | C2100 C2102 | 63.50 | 19.05 39.67 | 18.90 | 9.54 | 40.4 | 44.7 | 30.0 | 4.00 | 88.5/20114 | 102.6 | 3.01 4.83 |
| C220AH C220AHL | C2100H C2102H | 63.50 | 19.05 39.67 | 18.90 | 9.54 | 43.6 | 46.9 | 30.0 | 4.80 | 88.5/20114 | 112.4 | 3.56 5.38 |
| C224A C224AL | C2120 C2122 | 76.20 | 22.23 44.45 | 25.22 | 11.11 | 50.3 | 54.3 | 35.7 | 4.80 | 127.0/28864 | 147.3 | 4.66 7.66 |
| C224AH C224AHL | C2120H C2122H | 76.20 | 22.23 44.45 | 25.22 | 11.11 | 53.5 | 57.5 | 35.7 | 5.60 | 127.0/28864 | 160.9 | 5.26 8.26 |
| C232A C232AL | C2160 C2162 | 101.60 | 28.58 57.15 | 31.75 | 14.29 | 64.8 | 69.6 | 47.8 | 6.40 | 226.8/51545 | 278.9 | 8.15 13.00 |
| C232AH C232AHL | C2160H C2162H | 101.60 | 28.58 57.15 | 31.75 | 14.29 | 68.2 | 73.0 | 47.8 | 7.20 | 226.8/51545 | 285.8 | 9.06 13.84 |
