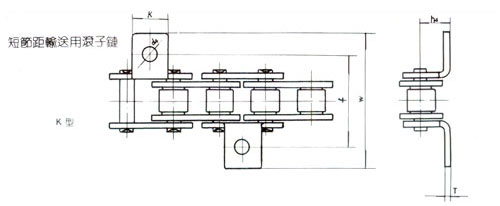

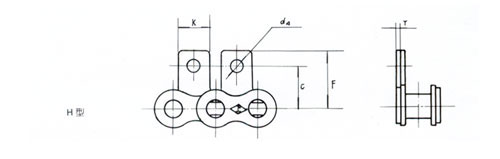

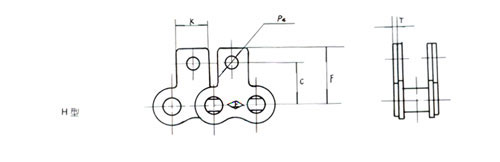

| ISO链号 ISO chain No. |
ANSI链号 ANSI chain No. |
P | T | d4 | f | W | h4 | C | F | N |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | ||
| 08A | 40 | 12.7 | 1.50 | 3.6 | 25.40 | 34.1 | 7.94 | 12.7 | 17.3 | 9.5 |
| 10A | 50 | 15.875 | 2.06 | 5.4 | 31.75 | 44.5 | 10.30 | 15.9 | 22.3 | 12.7 |
| 12A | 60 | 19.05 | 2.44 | 5.2 | 38.10 | 54.4 | 11.90 | 18.25 | 26.3 | 15.9 |
| 16A | 80 | 25.4 | 3.26 | 6.8 | 50.80 | 70.4 | 15.90 | 24.6 | 34.2 | 19.1 |
| 20A | 100 | 31.75 | 4.00 | 8.7 | 63.50 | 89.4 | 19.85 | 31.75 | 44.6 | 25.4 |
| 24A | 120 | 38.1 | 4.80 | 10.3 | 76.20 | 105.0 | 23.00 | 36.55 | 50.9 | 28.6 |
| 28A | 140 | 44.45 | 5.60 | 11.4 | 88.90 | 123.0 | 28.60 | 44.5 | 62.00 | 34.9 |
| 32A | 160 | 50.8 | 6.40 | 13.1 | 101.6 | 142.8 | 31.80 | 50.8 | 59.85 | 38.1 |
| 08B | 12.7 | 1.50 | 4.3 | 25.40 | 36.4 | 8.89 | 14.7 | 20.45 | 11.0 | |
| 10B | 15.875 | 1.70 | 5.5 | 33.22 | 52.12 | 10.0 | 16.3 | 22.90 | 14.3 | |
| 12B | 19.05 | 1.85 | 6.4 | 38.10 | 52.2 | 13.46 | 21.2 | 28.40 | 15.9 | |
| 16B | 25.4 | 3.10 | 9.0 | 57.30 | 83.18 | 18.0 | 22.4 | 33.30 | 19.1 |
