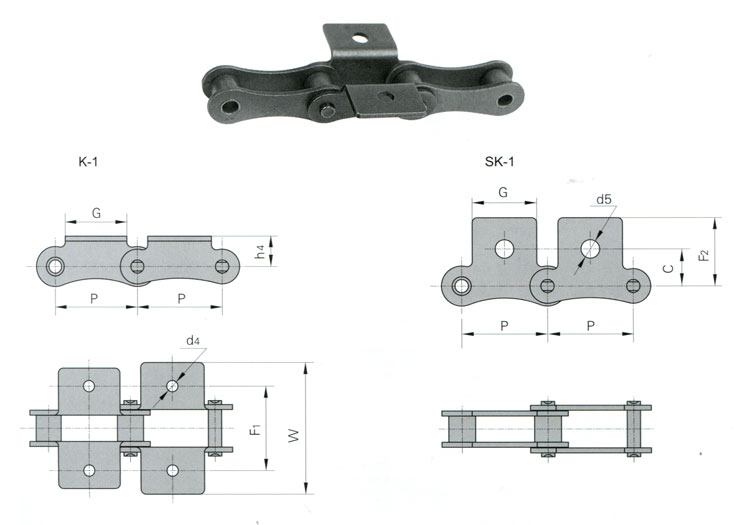

| DIN/ISO 链号 DIN/ISO Chain No. |
ANSI 链号 ANSI Chain No. |
P | G | F1 | W | H4 | D4 | C | F2 | D5 |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | ||
| 208A | 2040 | 25.40 | 19.1 | 25.4 | 39.6 | 9.1 | 3.4 | 11.1 | 20.5 | 5.5 |
| 210A | 2050 | 31.75 | 23.8 | 31.8 | 49.0 | 11.1 | 5.5 | 14.3 | 25.0 | 6.6 |
| 212A | 2060 | 38.10 | 28.6 | 42.9 | 67.8 | 14.7 | 5.5 | 17.5 | 32.9 | 9.2 |
| 216A | 2080 | 50.80 | 38.1 | 55.6 | 87.8 | 19.1 | 6.8 | 22.2 | 43.5 | 11.0 |
| 220A | 2100 | 63.50 | 47.6 | 66.6 | 107.5 | 23.4 | 9.2 | 28.6 | 50.4 | 13.0 |
| 224A | 2120 | 76.20 | 57.2 | 79.3 | 121.4 | 27.8 | 10.5 | 33.3 | 55.5 | 15.0 |
| 208B | 25.40 | 23.2 | 25.4 | 39.6 | 9.1 | 4.5 | 11.1 | 20.5 | 5.5 | |
| 21 OB | 31.75 | 23.8 | 31.8 | 49.0 | 11.1 | 5.5 | ||||
| 212B | 38.10 | 35.0 | 38.1 | 57.0 | 14.7 | 6.6 | ||||
| 216B | 50.80 | 44.0 | 50.8 | 84.0 | 19.1 | 6.6 | ||||
| 220B | 63.50 | 52.0 | 63.5 | 104.0 | 23.4 | 8.4 | ||||
| 224B | 76.20 | 60.0 | 76.2 | 120.0 | 27.8 | 10.5 |
