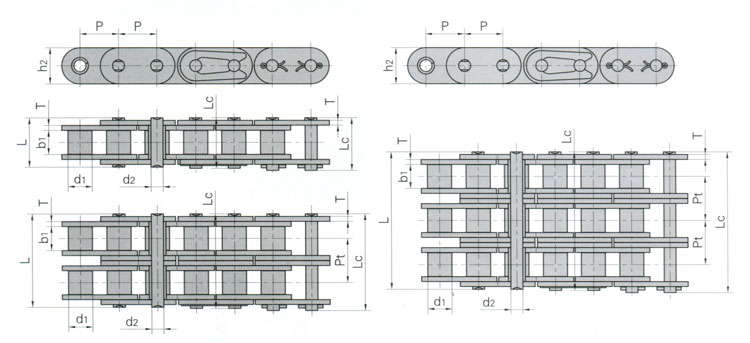

| DIN/ISO 链号 DIN/ISO Chain No. |
ANSI 链号 ANSI Chain No. |
节距 Pitch |
滚子直径 Roller diameter |
内节内宽 Width between inner plates |
销轴直径 Pin diameter |
销轴长度 Pin length |
内链板高度 Inner plate depth |
链板 厚度 Plate thick- ness |
排距 Trans-verse pitch |
极限拉伸 载荷 Ultimate tensile strength |
平均拉伸 载荷 Average tensile strength |
每米 长重 Weight per meter | |
| P | d1 max |
b1 min |
d2 max |
L max |
Lc max |
h2 max |
T max |
Pt | Fu min |
q | |||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/LB | kN | kg/m | ||
| *C35 | 9.525 | 5.08 | 4.77 | 3.60 | 13.3 | 14.3 | 9.00 | 1.30 | 7.9/1795 | 10.8 | 0.41 | ||
| C08A-1 | C40 | 12.700 | 7.95 | 7.85 | 3.98 | 16.6 | 18.8 | 12.00 | 1.50 | 14.1/3273 | 17.5 | 0.73 | |
| C10A-1 | C50 | 15.875 | 10.16 | 9.40 | 5.09 | 20.7 | 23.3 | 15.09 | 2.03 | 22.2/5045 | 29.4 | 1.23 | |
| C12A-1 | C60 | 19.050 | 11.91 | 12.57 | 5.96 | 25.9 | 28.3 | 18.0/18.2 | 2.42 | 31.8/7227 | 41.5 | 1.81/1.83 | |
| C16A-1 | C80 | 25.400 | 15.88 | 15.75 | 7.94 | 32.7 | 36.5 | 24.00 | 3.25 | 56.7/12886 | 69.4 | 3.09 | |
| C20A-1 | C100 | 31.750 | 19.05 | 18.90 | 9.54 | 40.4 | 44.7 | 30.00 | 4.00 | 88.5/20114 | 109.2 | 4.56 | |
| C24A-1 | C120 | 38.100 | 22.23 | 25.22 | 11.11 | 50.3 | 54.3 | 35.70 | 4.80 | 127.0/28864 | 156.3 | 6.86 | |
| C28A-1 | C140 | 44.450 | 25.40 | 25.22 | 12.71 | 54.4 | 59.0 | 41.00 | 5.60 | 172.4/39182 | 212.0 | 8.49 | |
| C32A-1 | C160 | 50.800 | 28.58 | 31.55 | 14.29 | 64.8 | 69.6 | 47.80 | 6.40 | 226.8/51545 | 278.9 | 11.50 | |
| C08A-2 | C40-2 | 12.700 | 7.95 | 7.85 | 3.98 | 31.0 | 33.2 | 12.00 | 1.50 | 14.38 | 28.2/6409 | 35.9 | 1.43 |
| C10A-2 | C50-2 | 15.875 | 10.16 | 9.40 | 5.09 | 38.9 | 41.4 | 15.09 | 2.03 | 18.11 | 44.4/10091 | 58.1 | 2.42 |
| C12A-2 | C60-2 | 19.050 | 11.91 | 12.57 | 5.96 | 48.8 | 51.1 | 18.0/18.2 | 2.42 | 22.78 | 63.6/14455 | 82.1 | 3.58/3.62 |
| C16A-2 | C80-2 | 25.400 | 15.88 | 15.75 | 7.94 | 62.7 | 65.8 | 24.00 | 3.25 | 29.29 | 113.4/25773 | 141.8 | 6.12 |
| C20A-2 | C100-2 | 31.750 | 19.05 | 18.90 | 5.94 | 76.4 | 80.5 | 30.00 | 4.00 | 35.76 | 177.0/40227 | 219.4 | 9.08 |
| C24A-2 | C120-2 | 38.100 | 22.23 | 25.22 | 11.11 | 95.8 | 99.7 | 35.70 | 4.80 | 45.44 | 254.0/57727 | 314.9 | 13.60 |
| C28A-2 | C140-2 | 44.450 | 25.40 | 25.22 | 12.71 | 103.3 | 107.9 | 41.00 | 5.60 | 48.87 | 344.8/78364 | 427.5 | 16.86 |
| C32A-2 | C160-2 | 50.800 | 28.58 | 31.55 | 14.29 | 123.3 | 128.1 | 47.80 | 6.40 | 58.55 | 453.6/103091 | 562.4 | 22.90 |
| C08A-3 | C40-3 | 12.700 | 7.95 | 7.85 | 3.98 | 45.4 | 47.6 | 12.00 | 1.50 | 14.38 | 42.3/9614 | 50.0 | 2.14 |
| C10A-3 | C50-3 | 15.875 | 10.16 | 9.40 | 5.09 | 57.0 | 59.5 | 15.09 | 2.03 | 18.11 | 66.6/15136 | 77.8 | 3.62 |
| C12A-3 | C60-3 | 19.050 | 11.91 | 12.57 | 5.96 | 71.5 | 73.9 | 18.0/18.2 | 2.42 | 22.78 | 95.4/21682 | 111.1 | 5.36/5.41 |
| C16A-3 | C80-3 | 25.400 | 15.88 | 15.75 | 7.94 | 91.7 | 95.1 | 24.00 | 3.25 | 29.29 | 170.1/38659 | 198.4 | 9.10 |
| C20A-3 | C100-3 | 31.750 | 19.05 | 18.90 | 9.54 | 112.2 | 116.3 | 30.00 | 4.00 | 35.76 | 265.5/60341 | 309.6 | 13.60 |
| C24A-3 | C120-3 | 38.100 | 22.23 | 25.22 | 11.11 | 141.4 | 145.2 | 35.70 | 4.80 | 45.44 | 381.0/86591 | 437.2 | 20.43 |
| C28A-3 | C140-3 | 44.450 | 25.40 | 25.22 | 12.71 | 152.2 | 156.8 | 41.00 | 5.60 | 48.87 | 517.2/117545 | 593.3 | 25.23 |
| C32A-3 | C160-3 | 50.800 | 28.58 | 31.55 | 14.29 | 181.8 | 186.6 | 47.80 | 6.40 | 58.55 | 680.4/154636 | 780.6 | 34.19 |
*套筒链：表中滚子直径d1为套筒直径
*Bushing chain: d1 in the table indicate the external diameter of the bushing.
