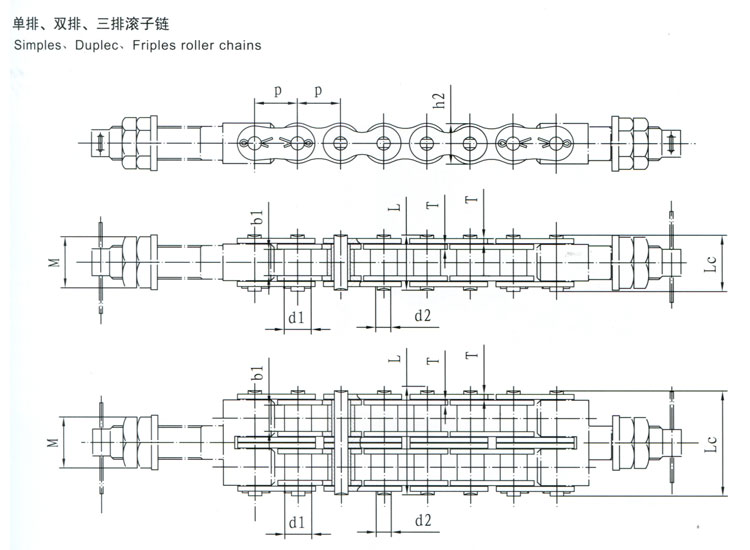

| 上字链号 Shangzi Chain No. |
节距 Pitch |
滚子直径 Roller diameter |
内节内宽 Width between inner plates |
销轴直径 Pin diameter |
销轴长度 Pin length |
链板高度 Inner plate depth |
链板厚度 Plate thick-ness |
螺栓规格 Bolt type |
极限拉伸载荷 Ultimate tensile strength |
每米长重 Weight per meter | |
| P | d1 max |
b1 min |
d2 max |
L max |
Lc max |
h2 max |
T max |
M | Fu min |
q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN | kg/m | |
| 08APE-1 | 12.7 | 7. 92 | 7. 85 | 3. 96 | 16.6 | 18 | 12 | 1.5 | 16 | 0. 65 | |
| 10APE-1 | 15. 875 | 10.16 | 9.4 | 5. 08 | 20.7 | 22.5 | 15. 09 | 2 | 24.2 | 1. 1 | |
| 12APE-1 | 19.05 | 11.91 | 12.57 | 5. 94 | 25.9 | 28 | 18 | 2.4 | 36.6 | 1.55 | |
| 16APE-1 | 25.4 | 15. 88 | 15. 75 | 7. 92 | 32.7 | 36.5 | 24 | 3.25 | M20 | 73 | 2.6 |
| 16APE-2 | 62. 7 | 65.8 | 146 | 5. 15 | |||||||
| 16APE-3 | 91.7 | 94.5 | 219 | 7. 89 | |||||||
| 16AHPE-1 | 36.2 | 39 | 4 | 73 | 3.1 | ||||||
| 20APE-1 | 31.75 | 19. 05 | 18.9 | 9. 53 | 40.4 | 44.7 | 30 | 4 | M24 | 109 | 3.91 |
| 20APE-2 | 76.4 | 80.5 | 218 | 7.8 | |||||||
| 20APE-3 | 112.2 | 116.3 | 327 | 11.77 | |||||||
| 20AHPE-1 | 43.6 | 46.9 | 4.8 | 109 | 4. 52 | ||||||
| 24APE-1 | 38.1 | 22.23 | 25. 22 | 11. 1 | 50.3 | 54. 3 | 35. 7 | 4.8 | M30 | 149 | 5. 62 |
| 24APE-2 | 95.8 | 99.7 | 298 | 11.7 | |||||||
