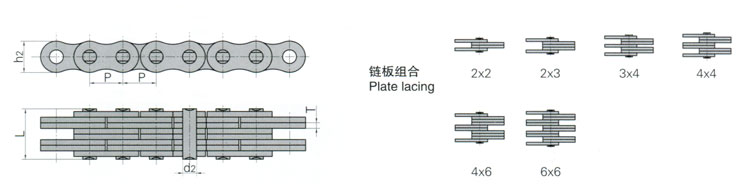

| ISO 链号 ISO Chain No. |
ANSI 链号 ANSI Chain No. |
节距 Pitch |
链板组合 Plate lacing |
链板高度 Plate depth |
链板 厚度 Plate thick- ness |
销轴直径 Pin diameter |
销轴长度 Pin length |
极限拉伸 载荷 Ultimate tensile strength |
平均拉伸 载荷 Average tensile strength |
每米 长重 Weight per meter |
| P | h2 max |
T max |
d2 max |
L max |
Fu min |
q | ||||
| mm | mm | mm | mm | mm | kN/LB | kN | kg/m | |||
| LH2022 | BL1022 | 31.75 | 2 × 2 | 30.18 | 4.9 | 11.11 | 25.37 | 115.6/26272 | 150.8 | 3.85 |
| LH2023 | BL1023 | 2 × 3 | 30.33 | 115.6/26272 | 150.8 | 4.79 | ||||
| LH2034 | BL1034 | 3 × 4 | 40.23 | 182.4/41454 | 231.6 | 6.66 | ||||
| LH2044 | BL1044 | 4 × 4 | 45.19 | 231.3/52568 | 291.4 | 7.59 | ||||
| LH2046 | BL1046 | 4 × 6 | 55.09 | 231.3/52568 | 291.4 | 9.46 | ||||
| LH2066 | BL1066 | 6 × 6 | 65.00 | 347.0/78863 | 430.3 | 11.32 | ||||
| LH2422 | BL1222 | 38.1 | 2 × 2 | 36.20 | 5.77 | 12.71 | 29.62 | 151.2/34363 | 192.0 | 5.26 |
| LH2423 | BL1223 | 2 × 3 | 35.43 | 151.2/34363 | 192.0 | 6.54 | ||||
| LH2434 | BL1234 | 3 × 4 | 47.07 | 244.6/55591 | 315.9 | 9.09 | ||||
| LH2444 | BL1244 | 4 × 4 | 52.88 | 302.5/68750 | 381.1 | 10.36 | ||||
| LH2446 | BL1246 | 4 × 6 | 64.52 | 302.5/68750 | 381.1 | 12.92 | ||||
| LH2466 | BL1266 | 6 × 6 | 76.15 | 453.7/103113 | 543.6 | 15.48 | ||||
| LH2822 | BL1422 | 44.45 | 2 × 2 | 42.24 | 6.55 | 14.29 | 33.55 | 191.3/43477 | 225.7 | 6.87 |
| LH2823 | BL1423 | 2 × 3 | 40.16 | 191.3/43477 | 225.7 | 8.52 | ||||
| LH2834 | BL1434 | 3 × 4 | 53.37 | 315.8/71772 | 372.6 | 11.86 | ||||
| LH2844 | BL1444 | 4 × 4 | 59.97 | 382.6/86954 | 451.2 | 13.53 | ||||
| LH2846 | BL1446 | 4 × 6 | 73.18 | 382.6/86954 | 451.2 | 16.87 | ||||
| LH2866 | BL1466 | 6 × 6 | 86.39 | 578.3/131431 | 682.4 | 20.21 | ||||
| LH3222 | BL1622 | 50.8 | 2 × 2 | 48.26 | 7.52 | 17.46 | 39.01 | 289.1/65704 | 341.1 | 9.51 |
| LH3223 | BL1623 | 2 × 3 | 46.58 | 289.1/65704 | 341.1 | 11.83 | ||||
| LH3234 | BL1634 | 3 × 4 | 61.72 | 440.4/100091 | 519.6 | 16.46 | ||||
| LH3244 | BL1644 | 4 × 4 | 69.29 | 573.8/131431 | 680.4 | 18.78 | ||||
| LH3246 | BL1646 | 4 × 6 | 84.43 | 578.3/131431 | 680.4 | 23.42 | ||||
| LH3266 | BL1666 | 6 × 6 | 99.57 | 857.4/194863 | 1000.7 | 28.06 | ||||
| LH4022 | BL2022 | 63.5 | 2 × 2 | 60.33 | 9.91 | 23.81 | 51.74 | 433.7/98568 | 511.7 | 14.78 |
| LH4023 | BL2023 | 2 × 3 | 61.70 | 433.7/98568 | 511.7 | 18.37 | ||||
| LH4034 | BL2034 | 3 × 4 | 81.61 | 649.4/147590 | 766.2 | 25.54 | ||||
| LH4044 | BL2044 | 4 × 4 | 91.57 | 867.4/197163 | 1023.5 | 29.13 | ||||
| LH4046 | BL2046 | 4 × 6 | 111.48 | 867.4/197163 | 1023.5 | 36.30 | ||||
| LH4066 | BL2066 | 6 × 6 | 131.39 | 1301.1/295704 | 1535.2 | 43.47 |
