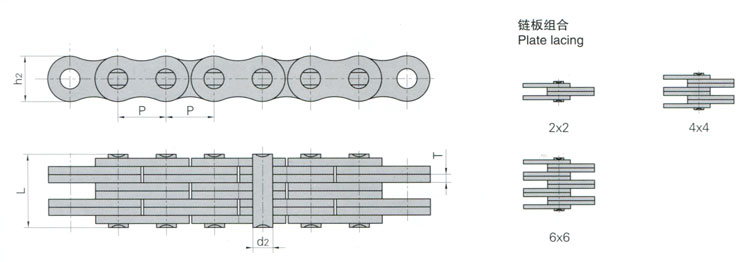

| DIN/ISO 链号 DIN/ISO Chain No. |
节距 Pitch |
链板组合 Plate lacing |
链板高度 Plate depth |
链板 厚度 Plate thick- ness |
销轴直径 Pin diameter |
销轴长度 Pin length |
极限拉伸 载荷 Ultimate tensile strength |
平均拉伸 载荷 Average tensile strength |
每米 长重 Weight per meter |
| P | h2 max |
T max |
d2 max |
L max |
Fu min |
q | |||
| mm | mm | mm | mm | mm | kN/LB | kN | kg/m | ||
| LL2022 | 31.75 | 2 × 2 | 26.4 | 3.5 | 10.19 | 20.1 | 95.0/21591 | 109.2 | 2.33 |
| LL2044 | 4 × 4 | 33.8 | 190.0/43182 | 218.5 | 4.40 | ||||
| LL2066 | 6 × 6 | 50.1 | 285.0/64773 | 324.6 | 6.79 | ||||
| LL2422 | 38.1 | 2 × 2 | 33.4 | 5.0 | 14.63 | 28.4 | 170.0/38363 | 195.5 | 4.47 |
| LL2444 | 4 × 4 | 46.3 | 340.0/77273 | 380.8 | 8.22 | ||||
| LL2466 | 6 × 6 | 66.4 | 510.0/115909 | 571.2 | 12.22 | ||||
| LL2822 | 44.45 | 2 × 2 | 37.08 | 6.0 | 15.90 | 32.2 | 200.0/45455 | 224.0 | 5.10 |
| LL2844 | 4 × 4 | 56.4 | 400.0/90909 | 448.0 | 9.90 | ||||
| LL2866 | 6 × 6 | 80.8 | 600.0/136363 | 672.0 | 14.60 | ||||
| LL3222 | 50.80 | 2 × 2 | 42.0 | 6.4 | 17.81 | 34.8 | 260.0/59091 | 291.2 | 6.20 |
| LL3244 | 4 × 4 | 60.6 | 520.0/118182 | 582.4 | 12.30 | ||||
| LL3266 | 6 × 6 | 86.4 | 780.0/177272 | 873.6 | 18.30 | ||||
| LL4022 | 63.50 | 2 × 2 | 52.76 | 8.0 | 22.89 | 42.2 | 360.0/81818 | 403.2 | 10.30 |
| LL4044 | 4 × 4 | 74.4 | 780.0/177273 | 873.6 | 20.00 | ||||
| LL4066 | 6 × 6 | 106.5 | 1080.0/245454 | 1209.6 | 30.00 | ||||
| LL4822 | 76.20 | 2 × 2 | 63.88 | 10.0 | 29.24 | 54.6 | 560.0/127272 | 627.2 | 18.50 |
| LL4844 | 4 × 4 | 92.6 | 1120.0/254545 | 1554.4 | 35.70 | ||||
| LL4866 | 6 × 6 | 133.4 | 1680.0/377953 | 1880.0 | 53.00 |
