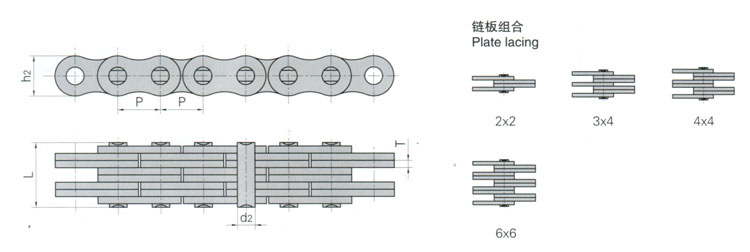

| ANSI 链号 ANSI Chain No. |
节距 Pitch |
链板组合 Plate lacing |
链板高度 Plate depth |
链板 厚度 Plate thick- ness |
销轴直径 Pin diameter |
销轴长度 Pin length |
极限拉伸 载荷 Ultimate tensile strength |
平均拉伸 载荷 Average tensile strength |
每米 长重 Weight per meter |
| P | h2 max |
T max |
d2 max |
L max |
Fu min |
q | |||
| mm | mm | mm | mm | mm | kN/LB | kN | kg/m | ||
| AL1022 | 31.75 | 2 × 2 | 25.6 | 4.0 | 9.53 | 19.6 | 88.5/20114 | 107.1 | 2.37 |
| AL1044 | 4 × 4 | 36.4 | 177.0/40227 | 203.6 | 4.68 | ||||
| AL1066 | 6 × 6 | 52.3 | 265.0/60227 | 315.3 | 7.20 | ||||
| AL1222 | 38.1 | 2 × 2 | 30.5 | 4.8 | 11.10 | 24.3 | 127.0/28864 | 151.1 | 3.65 |
| AL1244 | 4 × 4 | 43.8 | 254.0/57727 | 299.7 | 7.05 | ||||
| AL1266 | 6 × 6 | 63.2 | 381.0/86591 | 426.3 | 10.50 | ||||
| AL1444 | 44.45 | 4 × 4 | 36.4 | 5.6 | 12.64 | 51.3 | 372.7/84705 | 413.6 | 10.34 |
| AL1466 | 6 × 6 | 74.56 | 559.0/127045 | 620.4 | 15.16 | ||||
| AL1644 | 50.8 | 4 × 4 | 41.6 | 6.4 | 14.21 | 58.0 | 471.0/107045 | 522.8 | 12.98 |
| AL1666 | 6 × 6 | 83.8 | 706.0/160454 | 783.6 | 19.76 |
